HR series salt production pushing centrifuge from see water industrial centrifuge for salt
Introduction
The main motor drives the inner and outsider baskets to rotate at the full speed, material is fed into through a feed pipe.Under the centrifugal force, the liquid discharged out of the basket through filter screen and the holes of the basket,and then out of the machine through the tube for discharging liquid, while the solid deposits in the basket as a ring layer of cake.
As a result, pusher plate pushes the cake layer in the inner basket to move out of it and then into the outside basket for further separation,a ring layer of cake being formed, while the outside section of the inner basket pushes the cake layer in the outside basket to move continuously out of the outside basket and then discharge it through the slot for scraper.
HR Series are a kind of two stage horizontal pusher filtering centrifuge that can be continuously operated, They can perform feeding, separating, washing and discharging in sequence at their full-speed running. They have the advantages of continuous operation,
stable performance, large capacity, ideal washing effect, low moisture content of cake and less solid content in the liquid.
They are suitable for separating the suspension with solid phase particle size of more than 0.08mm and with the concentration of over 35%,and suitable for chemical industry, fertilizer, manufacturing salt and alkali, especially for the solid-liquid separation of sodium chloride,ammonium chloride, ammonium bicarbonate, sodium sulfate and carbamide.
Notice:
1. Please refer to the product manual for its technical parameters.
2. Please tell us the detailed feedstock characteristics, working conditions and requirements when inquiry.
3. Personalized design and manufacturing can be taken in accord with client particular needs:
4.Material: The feedstock-contact parts material can be ordinary stainless steel, special stainless steel, or titanium alloy,
ect.
5. Motor type: Ordinary motor or explosion-proof single-speed motor, etc.
6. Liquid Discharge Method: The mother liquid and washing liquid can be discharged in mixture or discharged separately.
7.Seive Gap Width Range: 0.1-0.4 mm.:0.08-0.40 mm.
8.It can be designed and manufactured according to GMP specification.
Technical specification:
| Product Model | HR400-N | HR500-N | HR630-N | HR800-N | HR1000-N |
| Inner/Outer Basket | Diameter(mm) | 337/400 | 438/500 | 560/630 | 720/800 | 920/1000 |
| Filtration Zone Length (mm) | 145/155 | 180/180 | 240/240 | 240/320 | 240/320 |
| RPM (r/min) | 1500-2200 | 1200-2000 | 1000-1800 | 800-1600 | 650-1250 |
| RCF | 503-1083 | 402-1120 | 350—1142 | 286-1145 | 236-875 |
| Stroke Length (mm) | 40 | 50 | 50 | 50 | 50 |
| Stroke frequency (l/min) | 30-80 | 30-80 | 30-80 | 30-80 | 20-70 |
| Main Motor Power (kW) | 11 | 30-45 | 37-55 | 55-75 | 55-90 |
| Oil Pump Motor Power (kW) | 4 | 15 | 30 | 37 | 45 |
| Production Capacity (t/h) | 1-8 | 5-15 | 8-25 | 15-40 | 18-50 |
| Hydraulic System Working Pressure (MPa) | 2. 0-3. 0 | 2. 0-3. 0 | 2.0-6.0 | 2.0-6.0 | 2.0-6.0 |
| Machine Body Weight (kg) | 2480 | 3100 | 4100 | 7000 | 12000 |
| Dimensions L×W×H (mm) | 2460×1286×1030 | 2750×1480×1290 | 3690×1600×1265 | 3700×1800×1450 | 4200×1900×1900 |
Structure

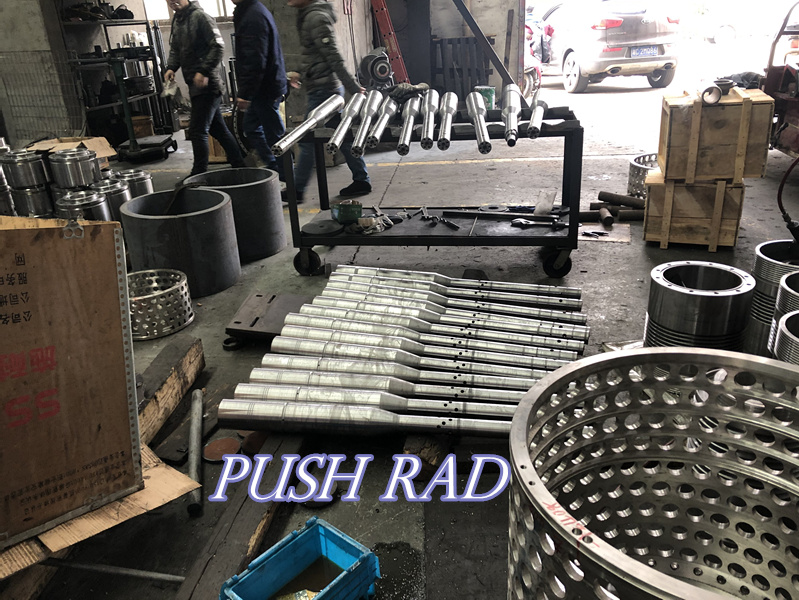

Main Part
